Barrel Completion Stages in Modern Pistol Manufacturing

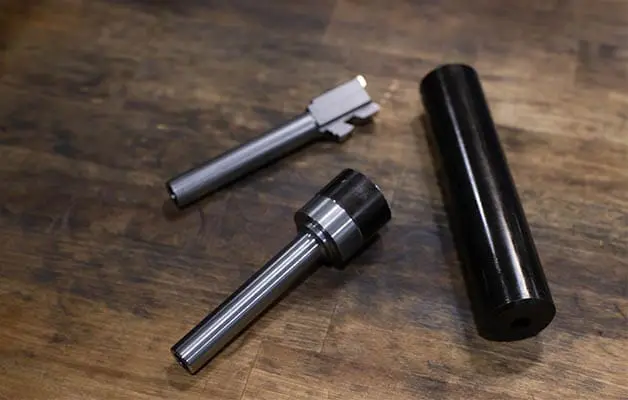

In pistol barrel manufacturing, barrels can be supplied at different stages of completion, depending on how much machining the OEM chooses to perform in-house.
- Barrel blanks are drilled, reamed, rifled, and stress-relieved. All exterior and functional features are left to downstream machining.
- Semi-finished “lollipops” add exterior profiling in a lathe while intentionally leaving lug features incomplete.
- Finished pistol barrels complete the remaining functional features, including lug machining, chambering, and custom engraving, preparing the barrel for final surface treatment and assembly.
Each option serves a purpose. Many OEMs buy lollipops to retain control over final fit internally. However, when scale, consistency, or internal capacity justify it, purchasing finished barrels often delivers greater value.
Starting with the Foundation
Barrel blanks provide the highest level of manufacturing control and flexibily within a family of parts. OEMs equipped with capable machining platforms and dedicated workholding may choose to perform all the profiling, lug machining, and chambering internally. This approach fits manufacturers with established finishing workflows and disciplined quality systems. When internal resources are aligned and production volumes are manageable, sourcing blanks keeps critical machining integrated within the OEM’s operation.
Retaining Control of Final Fit
Lollipops offer flexibility. OEMs with the appropriate machines, fixturing, and tooling may prefer to control lug geometry, chambering on a 5-axis or 3+2 vertical machining center. This model works well when volumes are stable and internal capacity is available. As production increases, however, finishing operations often become a constraint. Lug machining and chambering require tight process control, consistent datum alignment, and repeatability across large runs. At that point, the question becomes less about capability and more about throughput.
Geometry That Drives Accuracy
Finished pistol barrels begin the same way Vortakt’s lollipops do: with a button-rifled barrel blank. During button rifling, the bore is swaged to achieve uniform geometry and a high-quality surface finish, creating a stable foundation before any contouring or lug machining is performed. The barrel profile is then machined concentric to the bore, maintaining concentricity of less than 0.0020″. The outside diameter then becomes the primary datum reference for downstream lug machining, and its relationship to the bore directly determines how accurately finishing features can be machined.
Controlling Geometry in a Single Setup

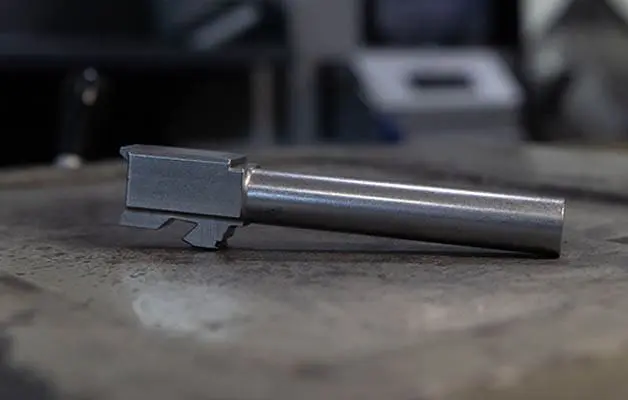

Finish machining is where the barrel becomes a fully functional component. Lug geometry and chambering are completed in single-setup fixturing that maintains alignment to the bore and to each other. Headspace, throat depth, surface finish, and concentricity of the chamber to the bore all influence feeding and reliability in a semi-automatic pistol. Performing lug machining and chambering in a single setup reduces tolerance stack-up and preserves alignment between the bore, chamber, and locking features.
Simplifying Without Compromising Control
Finished pistol barrels are often the right choice when OEMs are:
- Scaling production
- Experiencing bottlenecks in finishing operations
- Looking for consistency across large volumes
- Simplifying supplier relationships without sacrificing control
Pistol manufacturing continues to evolve. Programs are scaling faster, timelines are tightening, and expectations for consistency remain high. As volumes increase, finishing operations such as lug machining and chambering can become production constraints. Vortakt supplies barrel blanks, lollipops, and finished pistol barrels, allowing our customers to decide where we end in the process and they begin.
